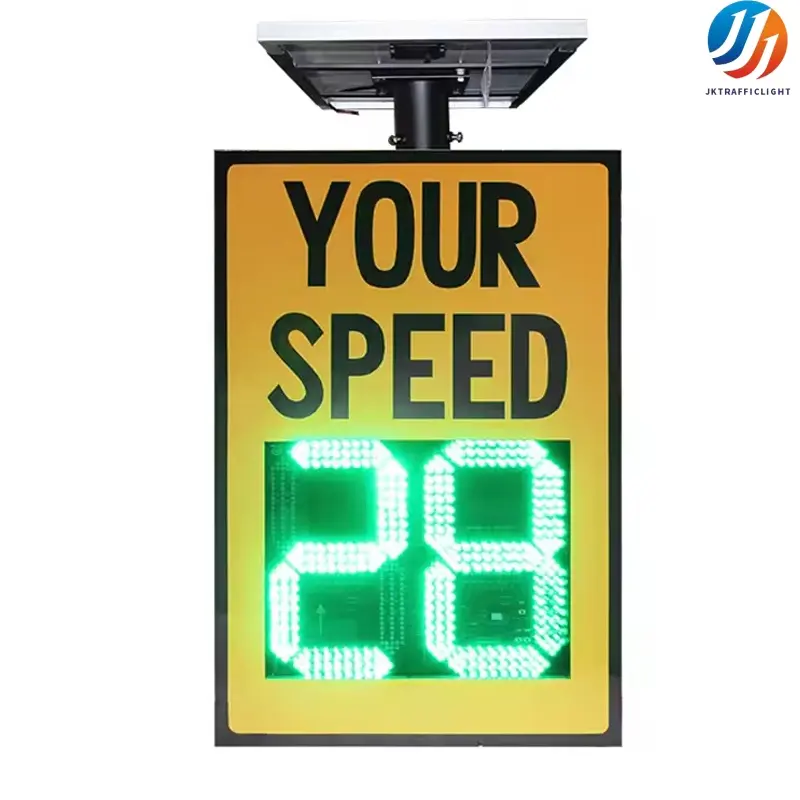

Solar Powered Led Digit Speed Sign Radar Speed Limit Sign Board
Product Introduction
The solar radar speed sign is a radar speed measurement device that can display the vehicle speed value in real time through the red and green of the LED screen, remind the driver of the speed, and warn against speeding, so as to effectively reduce the speed of the vehicle.
Product Specification
| Product name: | Solar LED Radar Speed Sign |
| Brand Name: | Jinke |
| Place of Origin: | Jiangxi, China |
| Size: | W 500x H 700 mm/ W 600 x H 1200mm/ W 700 x H 1200mm/ customized |
| Material: | Galvanized Steel+led light+ reflective sheeting |
| Measuring Distance: | >150m |
| Display mode: | 2/3-digit LED Display(optionally) |
| Power Supply: | Solar battery or main power |
| Work temperature: | -20 ℃-+ 70 ℃ |
| Pixel Construction: | RED+GREEN |
| Measurement Range From | 1-199km/h |
| Speed Radar Frequency: | 24.15GHz |
Product Features
High quality solar panel
Solar power supply, save energy,protect the environment, and havea good warning effect even at night

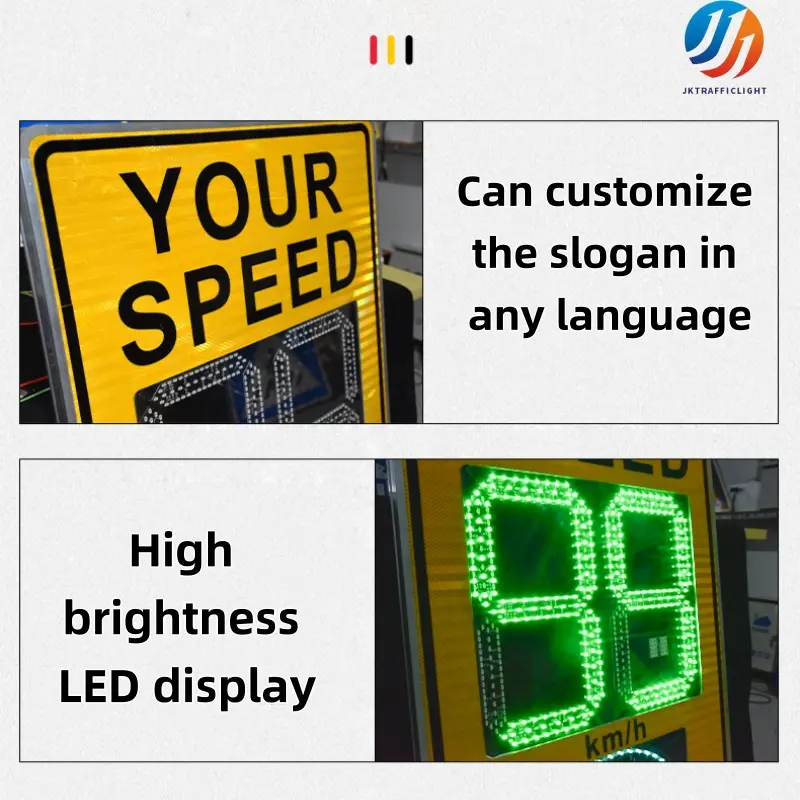

Bright LED chips
Super bright LED lamp beads. energy saving and long life.The color is clear , and it hasgood visual effects both dayand night
Engineering Reflective Sheet
Engineering-grade high-strengthreflective film , good reflective effect even if bad weather
Customizable Design
Provide customization services that allow users to customize materials, sizes, colors, etc., to meet specific needs. Customized logo, Customized packaging, Graphic customization all supported
Detailed images

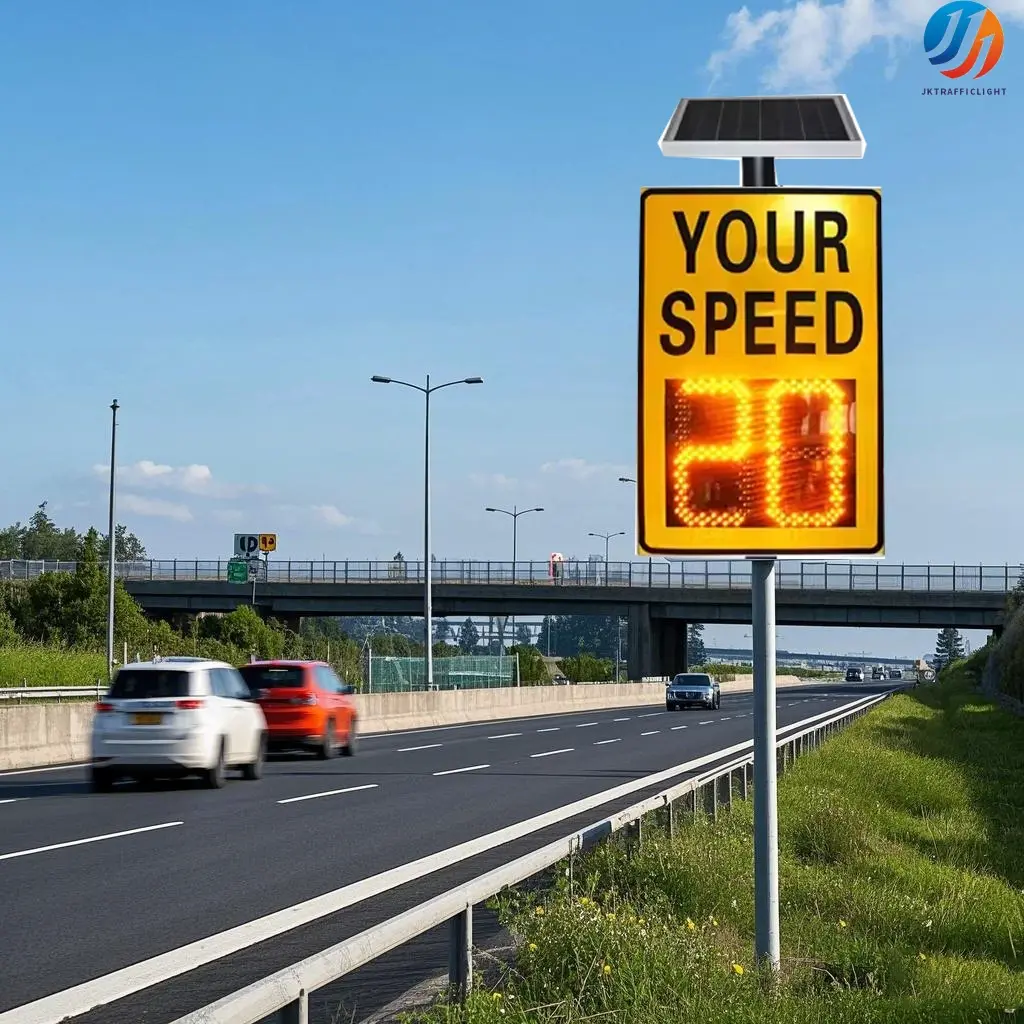

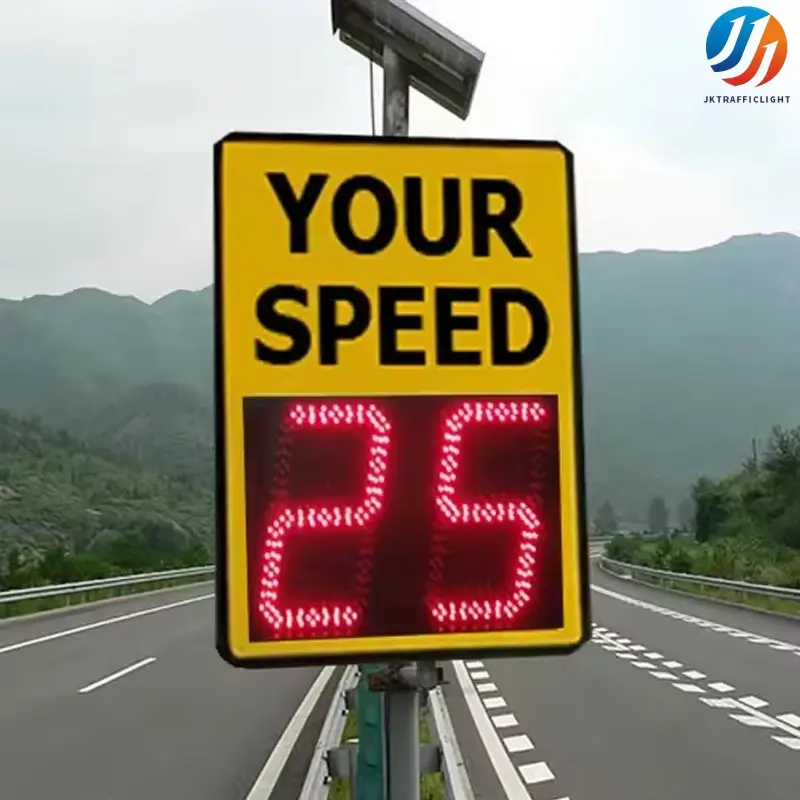

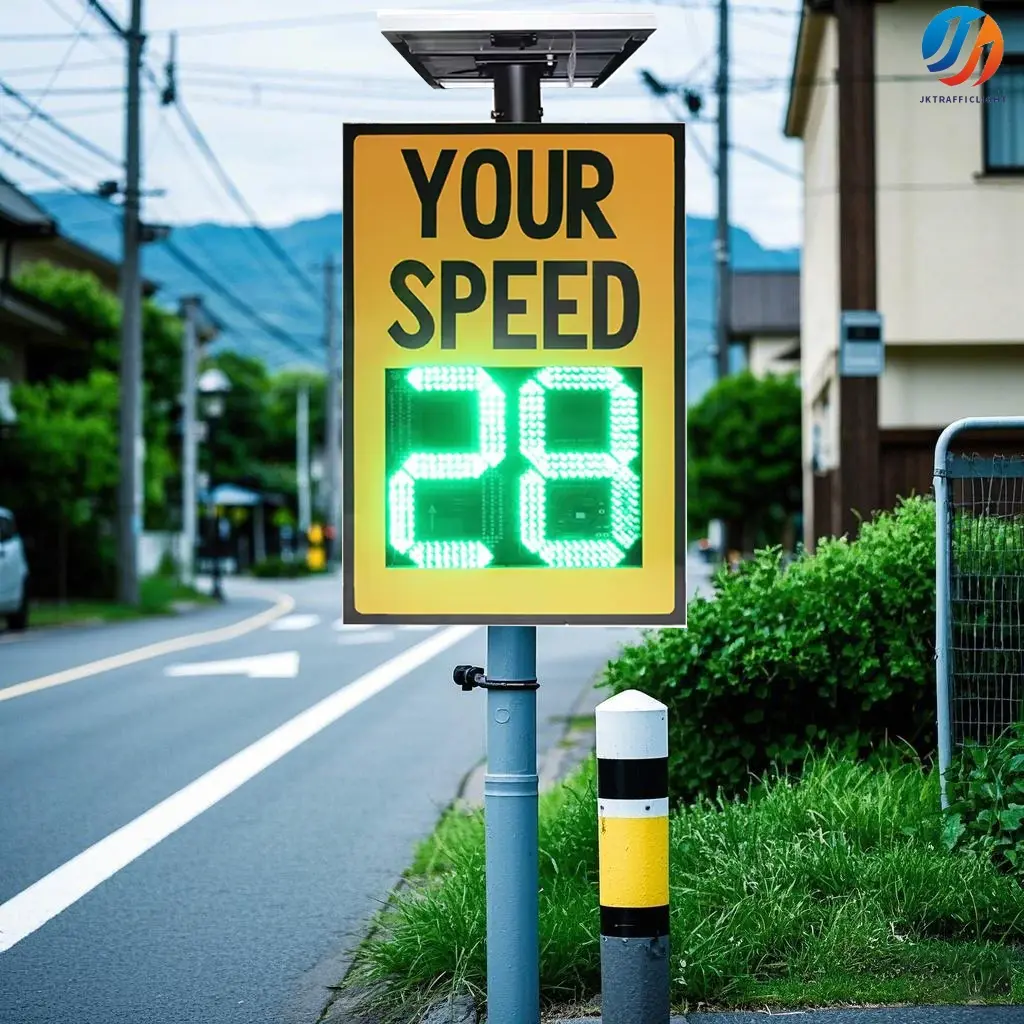

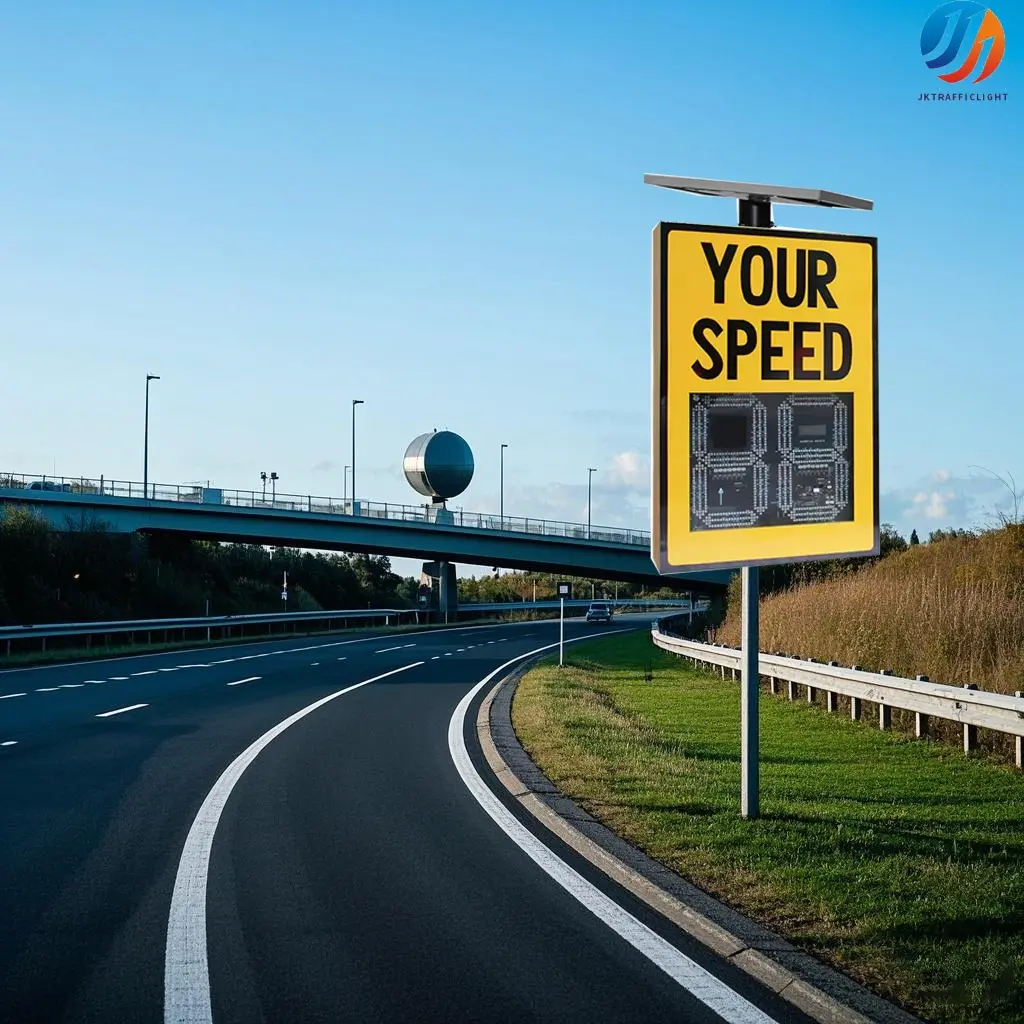

Installation and maintenance
1) Signboard installation angle: According to the installation specifications of road traffic signs and markings, signboards shall be installed as shown in the drawings.On that the included angle between the signboard and the road vertical line is set to be 0-10 degrees.
2) Radar installation angle: Since the radar is located on the digital display of the signboard, during actual installation,The angle of that signboard can be adjusted, namely the radar angle is adjusted.
Instructions
Butt-joint a round hole outlet joint of that solar panel with an input joint of the signboard;
Turn on the solar energy output switch;
Complete the parameter configuration through the traffic facility configuration tool APP.
Product Packaging
Frequently Asked Questions (FAQ)
Q1: Do you accept OEM?
A1: Yes. We accept producing products under Clients' brands.
Q2: Do I need a professional for installation?
A2: No need. Product design is simple, easy to install, users can install themselves according to the instructions.
Q3: Does the product support customization?
A3: Yes, we can customize the size, brightness, flicker mode and other parameters according to customer requirements.
