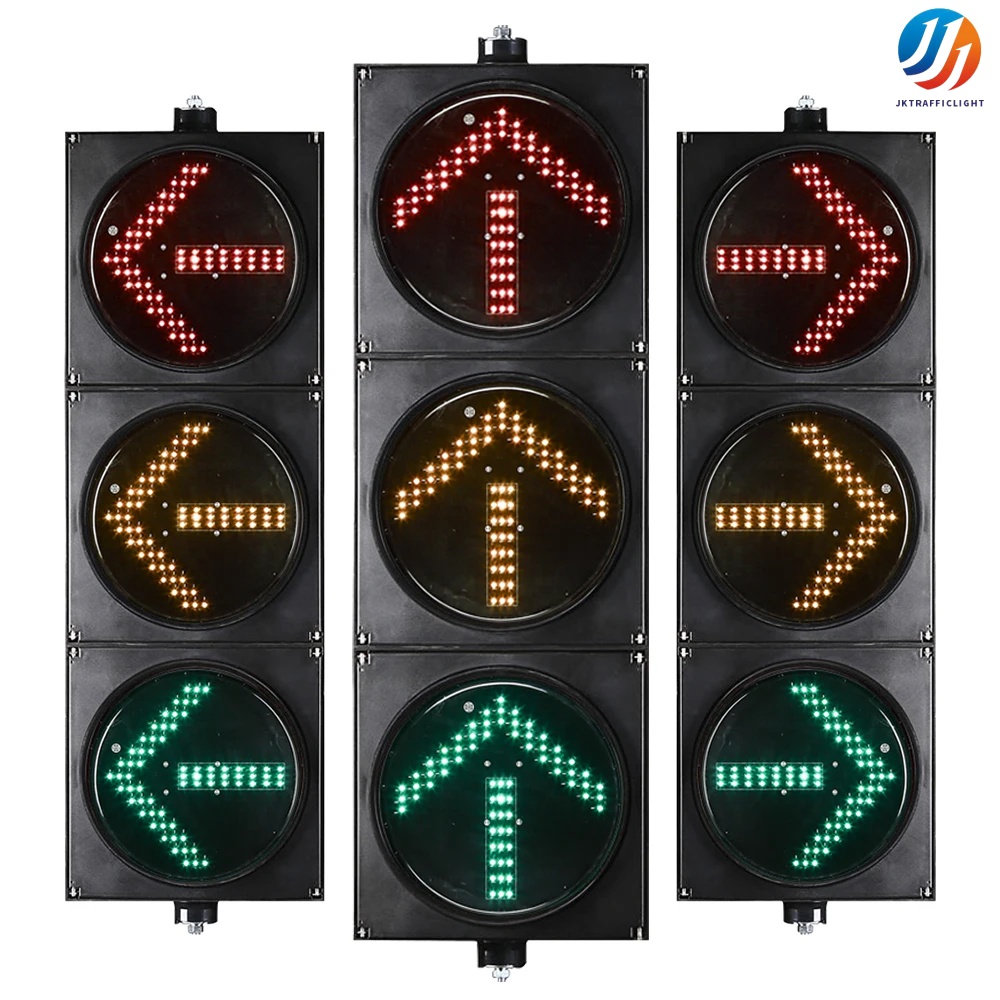

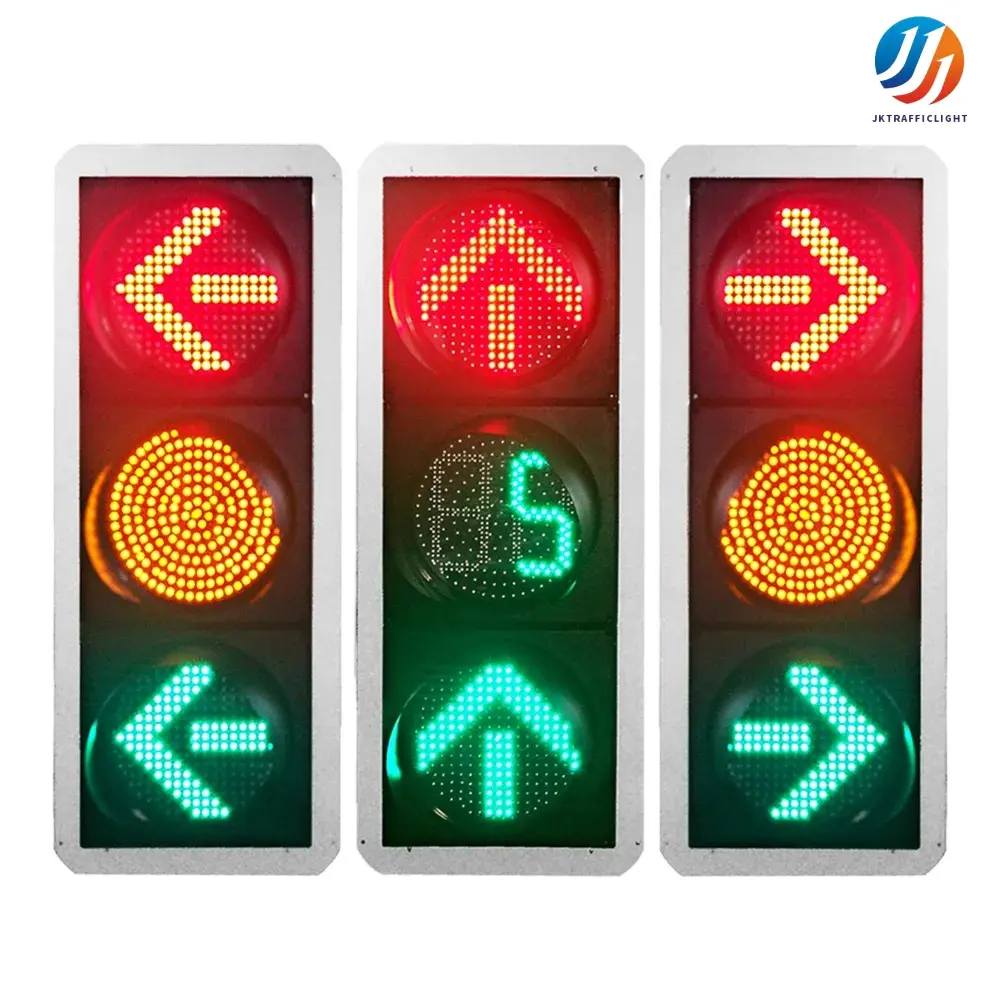

Smart Vehicular Semaforos Led Traffic Light Vertical and Horizontal Traffic Directional signal Light IP53
Product Introduction
The traffic light is the signal light that commands the traffic operation, which is generally composed of red light, green light and yellow light. The red light indicates that the traffic is prohibited, the green light indicates that the traffic is permitted, and the yellow light indicates the warning. direction signals is a key component of traffic signal equipment, mainly used to guide vehicles or pedestrians to travel or pass in the direction of the arrow, commonly seen in intersections, U-turn areas, dedicated lanes and other scenes. Its core function is through red, yellow, green arrow or pattern indication, combined with time-sharing control, clear traffic direction, reduce traffic conflicts and improve traffic efficiency. This product usually conforms to the national standard GB14887-2011, suitable for motor vehicles, non-motor vehicles and special scenarios (such as turning area).
Product Specification
| Product name: | Traffic Directional signal Light |
| Brand Name: | Jinke |
| Place of Origin: | Jiangxi, China |
| Diameter: | 100mm/200mm/300mm / customized |
| Material: | Polycarbonate (PC) engineering material/Aluminumdie-castmaterial |
| LED Wave length: | Red (625nm) Yellow (590nm) Green (505nm) |
| LED Light Angle: | 30° |
| Power Type: | Constant current |
| Operating Voltage: | DC12~24V,AC176~264V |
| Single Light Rated Power: | ≤8W |
| Service Life: | ＞50,000hours |
| Operating Temperature: | -40℃~80℃ |
| Protection Level: | ≥IP53 |
| Start/Stop Response Time: | ＜100ms |
| Light Source: | LED |
| Emitting Color: | Red/Green/ Yellow |
| Power Factor: | ＞0.85 |
| View Distance: | ＞500m |
Product Features

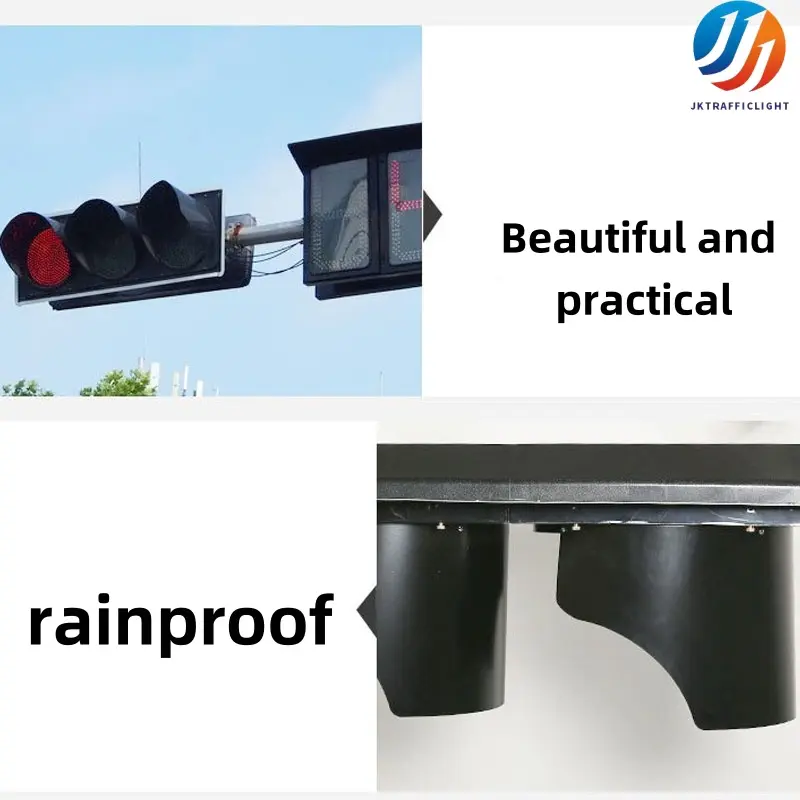

This product uses ultra-high brightness LED light source, high brightness, good clarity, visible distance of more than 600 meters, remarkable energy-saving effect, to ensure 100,000 hours of trouble-free. Monochrome display, uniform and beautiful color, in line with the national standard of traffic warning lights requirements. The lamp shell is made of aluminum alloy casting body, which has strong dustproof, rain proof, moisture and heat resistance, high temperature resistance and low temperature resistance. Easy to install, the back of the light body is designed with a quick installation structure, easy to install with different light poles.

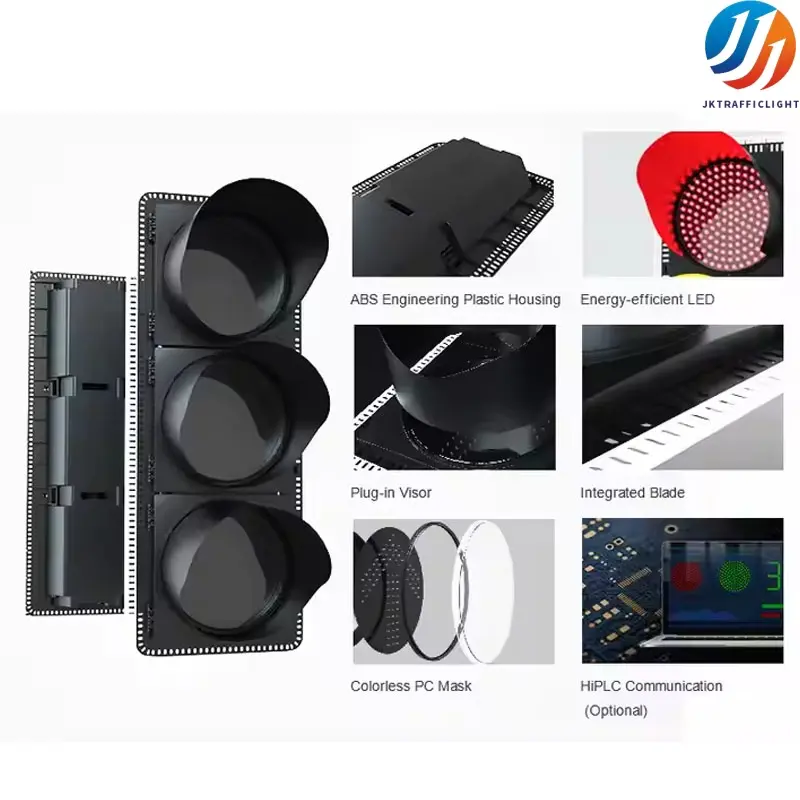

Detailed images
Installation and maintenance
Support horizontal and vertical installation, Angle adjustable, no tools can be quickly disassembled and maintained.The structure design is reasonable, the installation is simple and quick, and can be fixed by wall hanging, column and other ways. At the same time, the modular design, each component is easy to disassemble and replace, reduce maintenance costs, improve maintenance efficiency.
Product Packaging
Frequently Asked Questions (FAQ)
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples within 3 days, big order within 1-2 weeks.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: How to choose the system Voltage 12V /24V ?
A: We could design the system for you .Usually 12V system for 15W-40W LED lamp , 24V system for 50-150W LED lamp.
