IP65 Waterproof Solar Radar Speed Display for All Weather Conditions
Product Introduction
Emotional Traffic Calming Sign: Features a smiley/frowny face to give drivers instant feedback. Radar detects speed up to 200m. Solar power supply is optionaland easy to install. A friendly solution for safer roads.
Product Specification
| Product name: | P3 dot matrix radar speed detector Sign |
| Brand Name: | Jinke |
| Place of Origin: | Jiangxi, China |

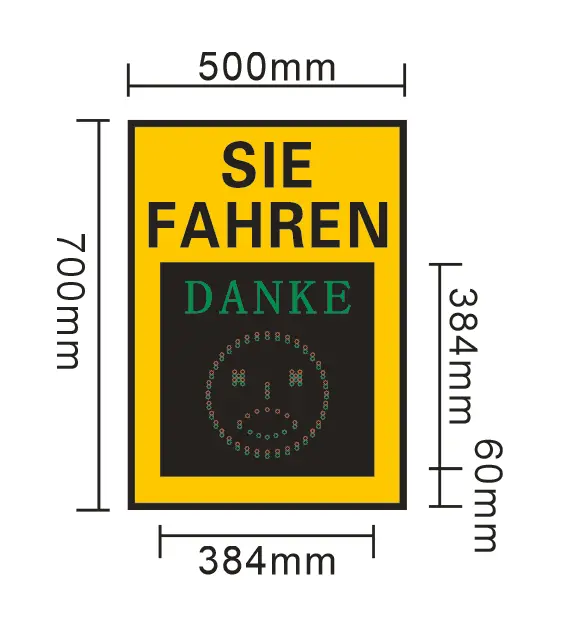

| Size: | 700*500*130mm/ customized |
| Material: | Galvanized Steel+led light+ reflective sheeting |

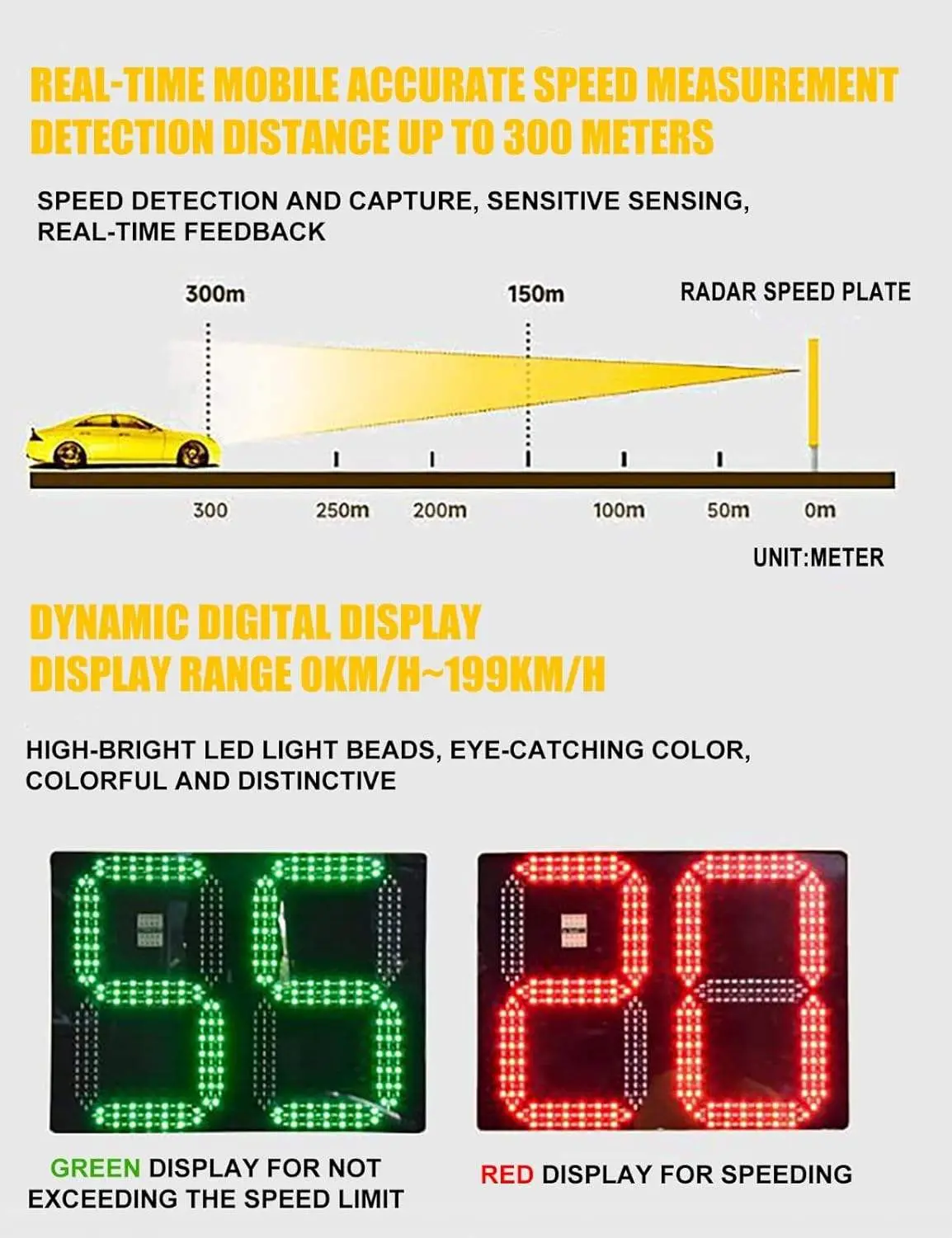

| Measuring Distance: | >200m |
| Maximum display speed: | two digits 99km/h, with a minimum starting speed of 1km/h (default 5km/h) |
| Power Supply: | Solar battery or main power |
| Overall power: | <= 10W |
| Speed limit mode: | Adjustable. Green speed value is displayed when not exceeding the limit, and red speed value is displayed when exceeding the limit (configured according to the speed limit on the sign) |
| Measurement Range From | 1-99km/h |
| Speed Radar Frequency: | 24.15GHz |
Product Features

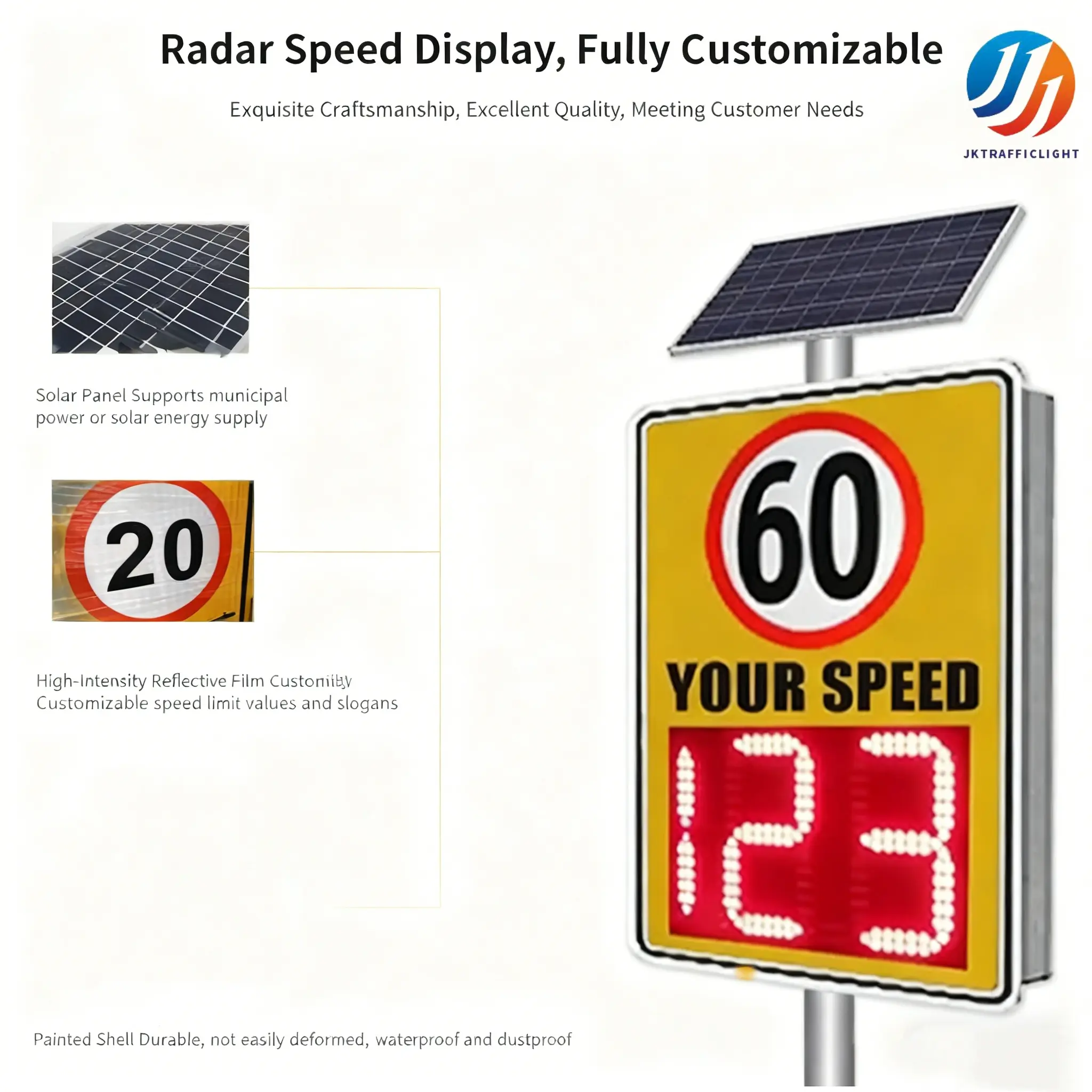

• Two power supply methods are available: solar power and mains power, ensuring long-term stable operation.

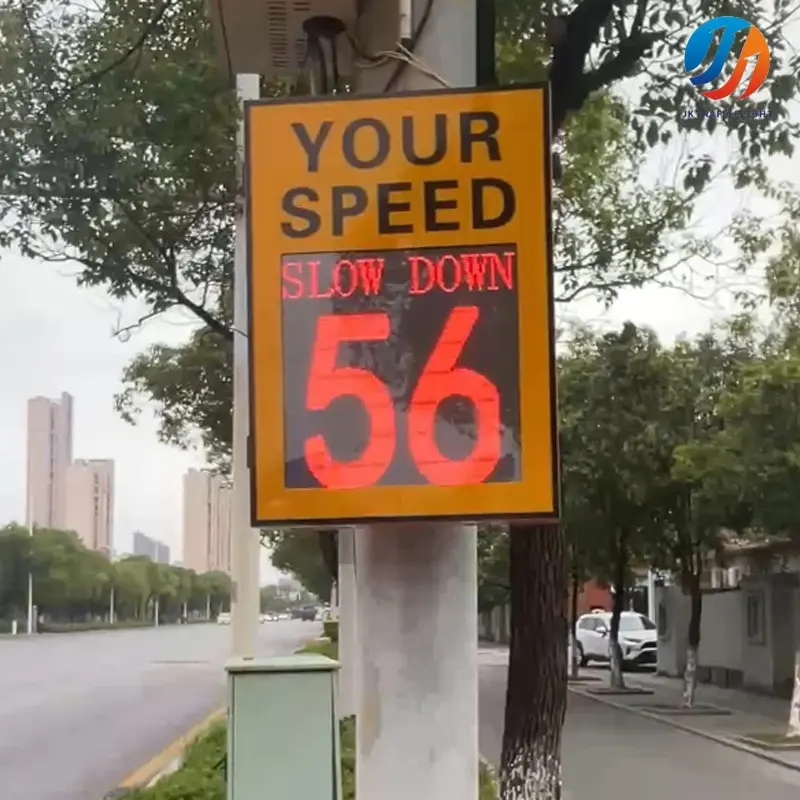

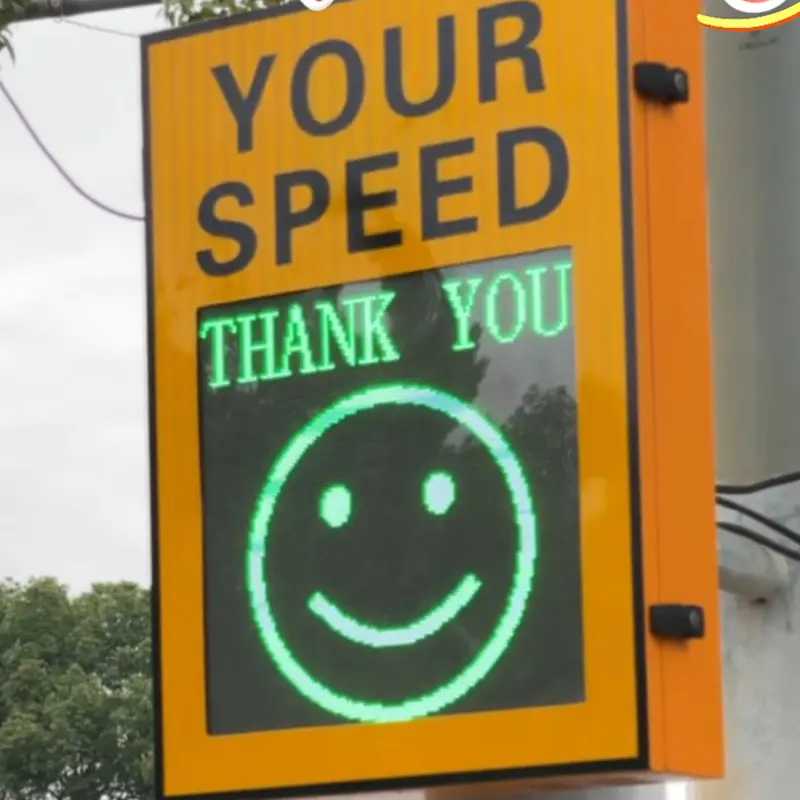

• Intelligent traffic warning: Real-time display of vehicle speed, and visual feedback such as "THANK YOU" (green) and "SLOW DOWN" (red) for compliant and speeding vehicles respectively.
• Precise radar detection: Utilizing radar sensors, the speed measurement error is extremely small, with a radar accuracy of less than 2km/h and high reliability
Detailed images
Installation and maintenance

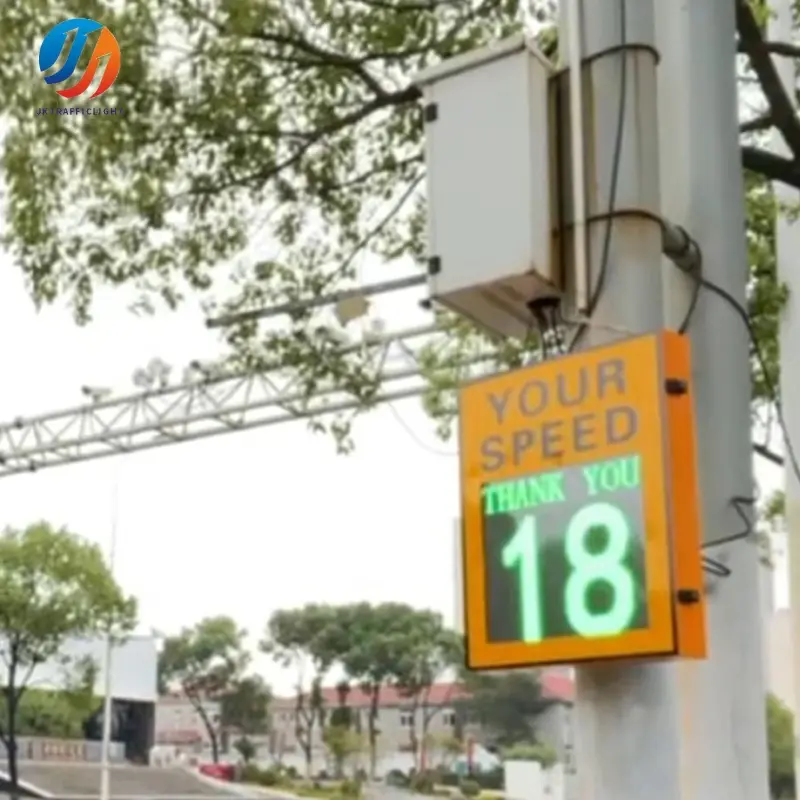

Signboard installation angle: According to the installation specifications of road traffic signs and markings, signboards shall be installed as shown in the drawings.On that the included angle between the signboard and the road vertical line is set to be 0-10 degrees.
Instructions
Butt-joint a round hole outlet joint of that solar panel with an input joint of the signboard;
Turn on the solar energy output switch;
Complete the parameter configuration through the traffic facility configuration tool APP.
Product Packaging
Frequently Asked Questions (FAQ)
Q1: Do you accept OEM?
A1: Yes. We accept producing products under Clients' brands.
Q2: Do I need a professional for installation?
A2: No need. Product design is simple, easy to install, users can install themselves according to the instructions.
