Intelligent LED direction Traffic signals Light Red Green Yellow Arrow Traffic Light IP53

Intelligent LED direction Traffic signals Light Red Green Yellow Arrow Traffic Light IP53

High brightness and accurate display

Imported bright LED chip, a single LED luminous intensity, red, yellow, green corresponding to different wavelengths, to ensure uniform chroma and strong penetration, visible distance of 500-600 meters or more.

Support independent arrow direction display (such as left, straight, right turn), some models have variable lane function, through the yellow light flashing or text prompt to dynamically adjust the lane use.



    Product Details

    High brightness and accurate display
    Imported bright LED chip, a single LED luminous intensity, red, yellow, green corresponding to different wavelengths, to ensure uniform chroma and strong penetration, visible distance of 500-600 meters or more.
    Support independent arrow direction display (such as left, straight, right turn), some models have variable lane function, through the yellow light flashing or text prompt to dynamically adjust the lane use.
    Durable construction and protection
    The shell material is mainly aluminum alloy, both lightweight and high strength characteristics, some products use polycarbonate (PC) mask, dustproof and waterproof level up to IP53 to IP55, withstand extreme temperature (-40℃ to +80℃), wind pressure > 145km/h, adapt to rain, snow, haze and other bad weather.
    Hydrophobic design reduces dust accumulation, light transmittance of up to 90%, some products are equipped with double lens or inclined plane structure, optimize light efficiency distribution.
    Intelligence and compatibility
    Support remote logic control (such as IO port control), some models integrated dimming function, can automatically adjust the brightness according to the environment light, reduce energy consumption.
    Compatible with solar power (DC12V/24V) and mains power (AC220V), flexible installation without complex wiring, especially suitable for remote areas or temporary traffic control scenarios.
    Long life and low maintenance
    LED life generally exceeds 50,000 hours (some up to 100,000 hours), using heat sink technology to reduce light decay, with maintenance-free batteries or intelligent charging and discharging systems, significantly reducing the frequency of replacement and maintenance.

    Product Introduction

    The direction signal light is a indicating device used for road traffic management. It guides the direction of vehicles and pedestrians through red, yellow and green arrows or patterns, and is commonly seen in intersections, variable lanes, bends and other scenes. Its core function is to provide clear direction through high brightness LED light source and standardized color light, optimize traffic flow and improve safety. The product design conforms to the national standard GB 14887-2011, supports solar or mains power supply, and ADAPTS to a variety of complex environments.

    Product Specification

    Product name: LED direction Traffic signals Light
    Brand Name: Jinke
    Place of Origin: Jiangxi, China
    Diameter: 100mm/200mm/300mm / customized
    Material: Polycarbonate (PC) engineering material/Aluminumdie-castmaterial
    LED Wave length: Red (625nm) Yellow (590nm) Green (505nm)
    LED Light Angle: 30°
    Power Type: Constant current
    Operating Voltage: DC12~24V,AC176~264V
    Single Light Rated Power: ≤8W
    Service Life: >50,000hours
    Operating Temperature: -40℃~80℃
    Protection Level: ≥IP53
    Start/Stop Response Time: <100ms
    Light Source: LED
    Emitting Color: Red/Green/ Yellow
    Power Factor: >0.85
    View Distance: >500m

    Product Features

    Efficient boot and security
    By standardizing color and pattern design to reduce driver misjudgment, especially at night or in low visibility conditions, high-lighted leds can quickly attract attention and reduce the risk of accidents.
    Energy saving and environmental protection
    Solar-powered models rely entirely on renewable energy and have low power consumption (average power 1.73W-5.4W), in line with the trend of green transportation.
    Easy installation and adaptability
    Modular design supports a variety of installation methods such as vertical pole and cross pole, and the back of the lamp body is reserved for quick installation structure, which can adapt to different lamp pole configurations and save construction time.
    Wide voltage inputs (AC176V-265V or DC12/24V) ensure stable operation in fluctuating voltage environments.
    Typical application scenario
    Urban traffic management: direction guidance at intersections, dynamic adjustment of variable lanes.
    Special section warning: curve, bridge, construction area traffic direction warning.
    Emergency and temporary control: temporary traffic diversion at large events and accident sites.

    Detailed images

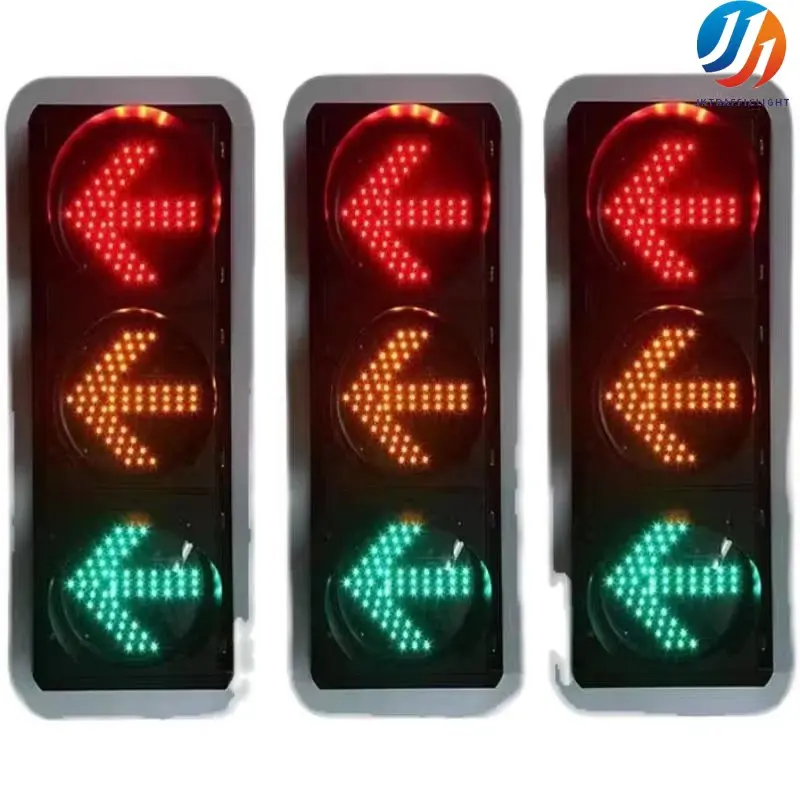

    Traffic signals Light Red Green Yellow (1)

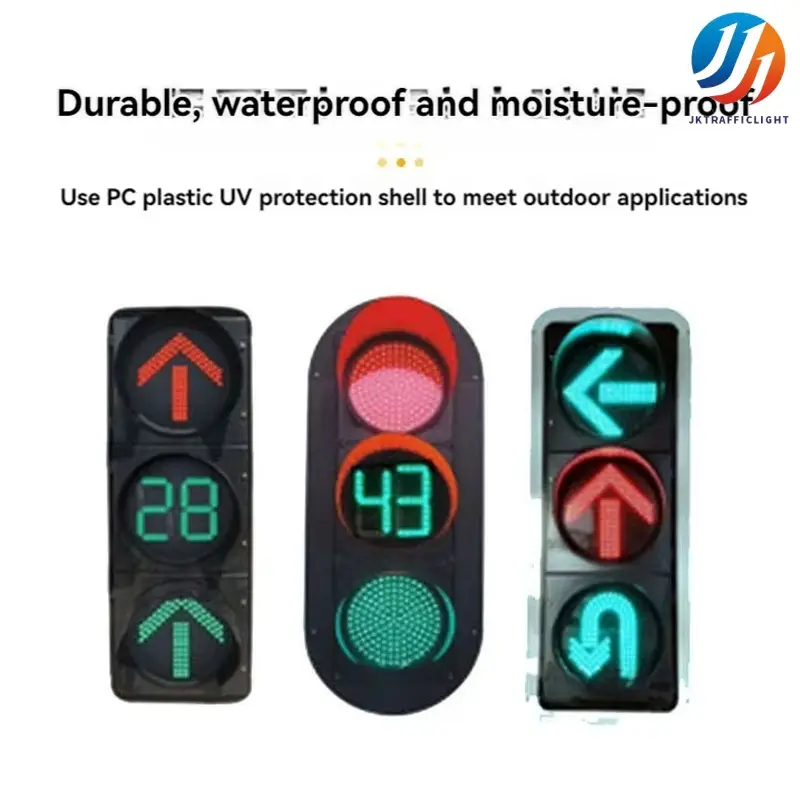

    Traffic signals Light Red Green Yellow (2)
    Traffic Light Safety Crosswalk Signal Lamp (3)

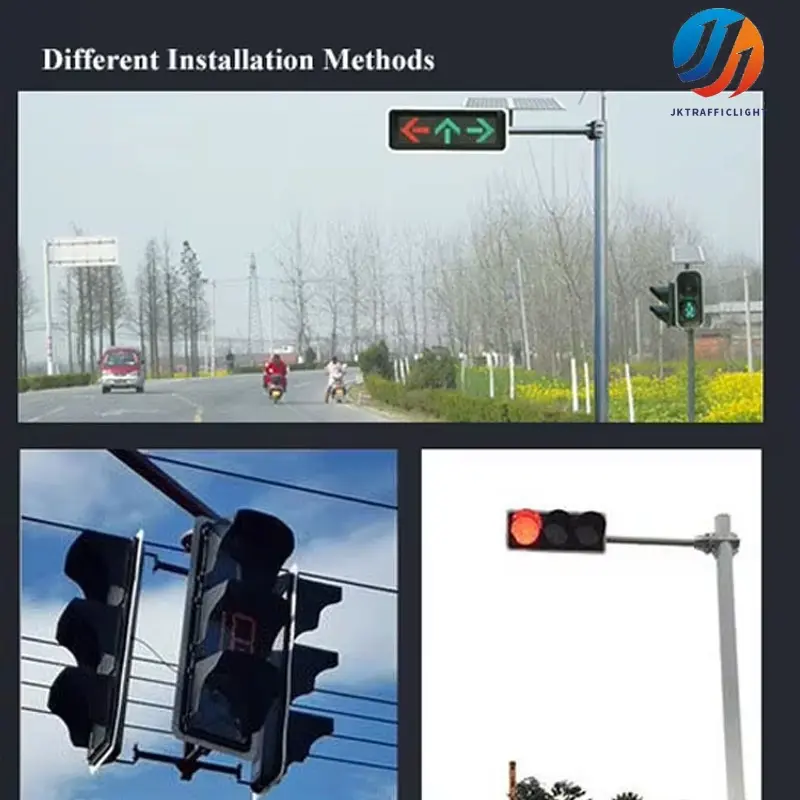

    Traffic signals Light Red Green Yellow (4)

    Product Packaging

    packing

    Frequently Asked Questions (FAQ)

    Q1. Can I have a sample order for led light?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
    Q2. What about the lead time?
    A: Samples within 3 days, big order within 1-2 weeks.
    Q3: How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
    Q4. Is it OK to print my logo on led light product?
    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
    Q5: How to choose the system Voltage 12V /24V ?
    A: We could design the system for you .Usually 12V system for 15W-40W LED lamp , 24V system for 50-150W LED lamp.
